Welcome

Tieval specialises in the design, manufacture, installation and world-wide support of automated, semi-automated and manual NDT inspection systems and solutions. Click the links below to contact us or explore our site.

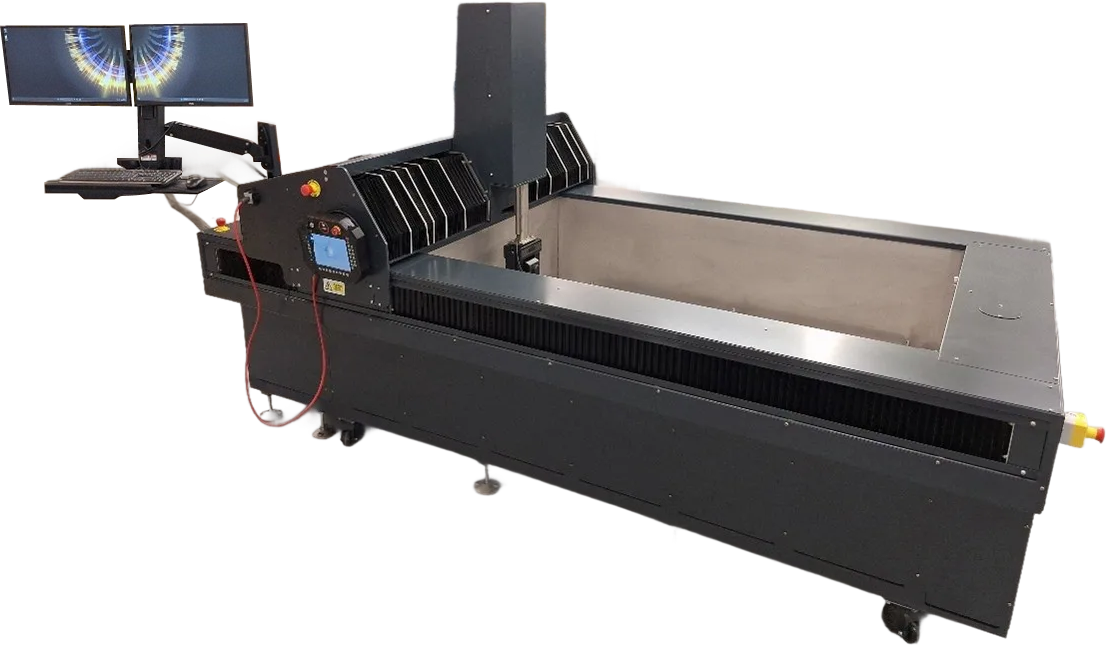

A cutout image of a fan blade inspector with a keyboard and monitor mounted to it.

Aero-Engine Fan Blade Inspection

Tieval are the official suppliers of all aspects of manufacture, calibration, maintenance, spares and technical support for M403V & M403T fan blade scanners as used on Rolls Royce Trent, RB2-11 and IAE V2500 aero-engine maintenance bases worldwide.

Software, configuration files, user manuals and all other necessary resources can be found in the blade zone.

See more Products
A blueprint-style line drawing of a double articulated cutting assembly mounted to a table.

What we can offer

Tieval Engineers can support a customer from initial concept, through process design, to equipment manufacture and all the way to lifetime calibration and maintenance support of metallic, composite and custom inspection systems.

  • Mechanical
  • Electrical
  • Hardware
  • Software
  • Manufacture
  • Installation
  • Commissioning
  • Maintenance
  • Calibration
  • Support
View all services

Recent Activity

Teach Pendant

I just wanted to write a quick post about our fully integrated teach pendant for easy control and programming. Most of our customers are happy using the motion panel embedded within the software but for those with larger systems or in instances where the control tower must be situated some distance from the machine, computer control is impractical or impossible. The teach pendant allows the operator full system control using independent jog buttons for each axis or combined controls for slopes, contours and kinematic moves. At the push of a button, coordinates can be sent to TiCore for easy remote scan pattern programming. The ultrasonic gate output means you can also check the signal response without having to run back and forth between the system and the controller. The pendant talks directly with the controller for maximised response time and the unit is hard-wired with an in-built emergency stop for enhanced safety and regulatory compliance.

This is available to purchase on new systems or as an upgrade to existing EtherCAT based systems.

Blog post image; Not required for the comprehension of the post.

Far from mundane!

This month (and a bit...) has been far from mundane! On top of routine calibration and service visits (spread over 3 continents), since our last post we've installed and commissioned a new system in Zhuhai (China), exhibited at the fantastic BINDT Aerospace Event in Filton (Bristol, UK) and are in the middle of building 2 new inspection systems. We've had a strong start to 2024 and we're showing no signs of slowing!

Blog post image; Not required for the comprehension of the post.

Composite Scanners

Two composite scanners entering the assembly stage.
One system is a rectilinear scanner and the other will be used for web-scanning. Both customers will be scanning aerospace parts.
These two systems will be added to our already growing catalogue.
1, Disc scanners.
2, Fan-blade scanners.
3, Rectilinear scanners.
4, Web scanners.
5, Cartesian rigs.
6, Robotic arms.

Blog post image; Not required for the comprehension of the post.
